DISC.. Firma 85 Amp Brushless Smart ESC 2S

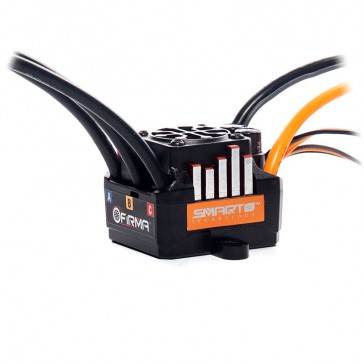

Spektrum Firma 85A Brushless Smart ESC, 2S

More details

Spektrum

SPMXSE1085

In stock In stock at our shop Shipping within 24/48 working hours.

 Shippingcosts from 6.99€
or collect for free at the shop. .

79,99 €

More info

Spektrum Firma 85A Smart ESC for surface vehicles is waterproof and delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.



EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.


FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Key features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:

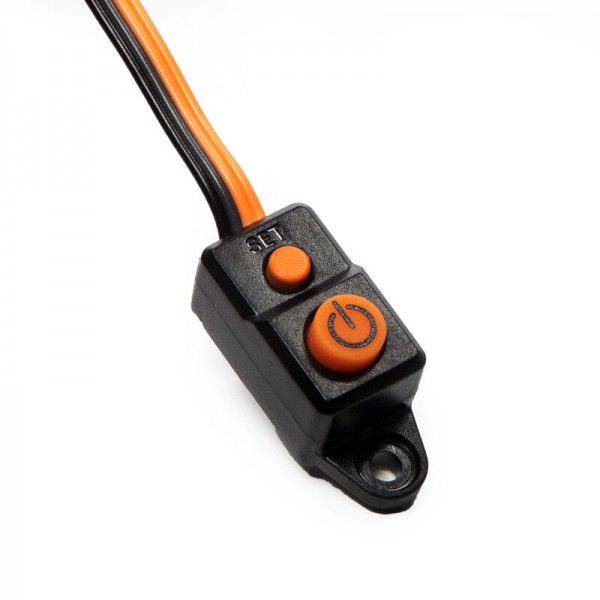

    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Ideal for 2WD and 4WD 1/10th scale surface applications running on 2s Lipo setups
  • High current adjustable BEC (6v or 7.4v @ 4 Amps)
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency

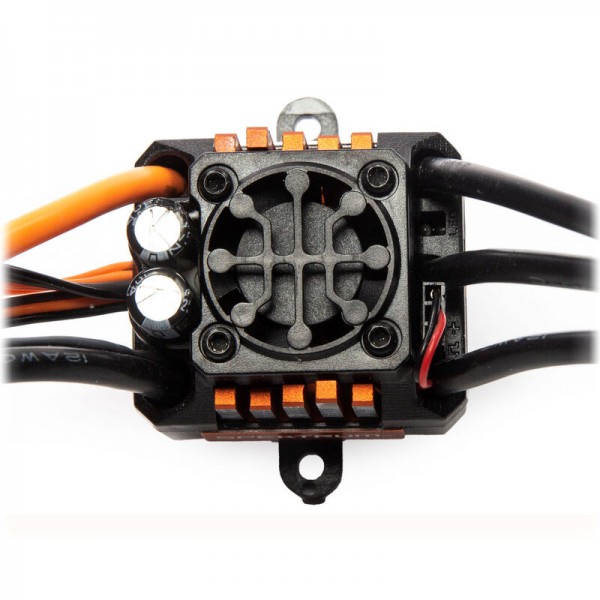

  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Specifications

Auto Cutoff Oui
Cordon d'alimentation 12AWG 5.1" (130mm)
Type de batterie LiPo (3.7V par élément)
BEC Oui
Courant max du BEC en continu 4A
Courant max du BEC en pointe 8A
Type de BEC Switch Mode
Tension du BEC 6V/7.4V
Freinage Oui
Type de connecteur IC3
Marche avant Oui
Tension d'entrée 7.4 - 9.6V (2-3S LiPo, 5-9 élets)
Cutoff tensin faible Programmable Non
Courant max en pointe 550A
Limites moteur Avec 2S LiPo: KV ≤ 5000 - Avec 3S LiPo: KV≤3000
Section fils de sortie 12AWG 5.1" (130mm)
Type de moteur Brushless - Sensorless
Courant max en contine 85A

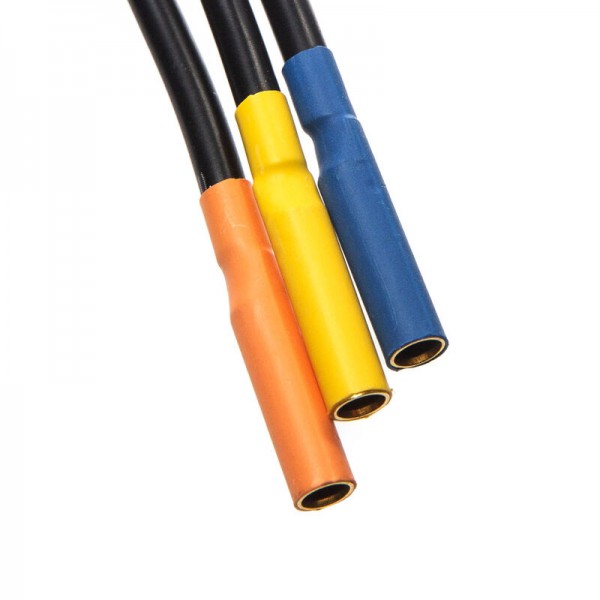

Connecteurs moteur 4mm Bullet
Protection surcharge Oui
Hauteur 1.3" (33 mm)
Longueur 1.7" (43 mm)
Poids 0.255lbs (116g)
Largeur 2.1" (53 mm)
Programmable Oui
Marche arrière Oui
Technologie Smart
Délai freinage Oui
Etanche Oui
Section des fils 12 AWG

Data sheet

  • Manufacturer : Spektrum

What you need to complete

  • Spektrum™ Surface Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter

Composition Kit

  • (1) Contrôleur Spektrum™ Firma™ Smart
  • (1) Planche autocollants Spektrum Smart
  • (1) Manuel
