Specifications
Application | Airplane or Heli |
Bearing | Dual |
Bushing Or Bearing | Bearing |
Connector Type | Universal |
Connector Wire Length | 11.8 in (300mm) |
Deadband | 2?s |
Gear Material | Metal |
Gear Type | Metal |
Maximum Servo Speed | 0.050-0.099 sec |
Maximum Servo Torque | 100-199 oz-in |
Motor Type | Brushless |
Overload Protection | Yes |
Product Height | 1.16 in (29.4mm) |
Product Length | 1.32 in (33.5mm) |
Product Weight | 1.4 oz (40g) |
Product Width | 0.59 in (14.9mm) |
Programmable | No |
Rotation Range | 120? |
Servo Operating Voltage | 6.0 - 8.4V (HV) |
Servo Size Category | Mini and Micro |
Servo Type | Digital |
Speed | 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V |
Spline Count | 23 Teeth |
Torque | 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V |
Wire Gauge | 22 AWG |
Data sheet
- Manufacturer : Spektrum

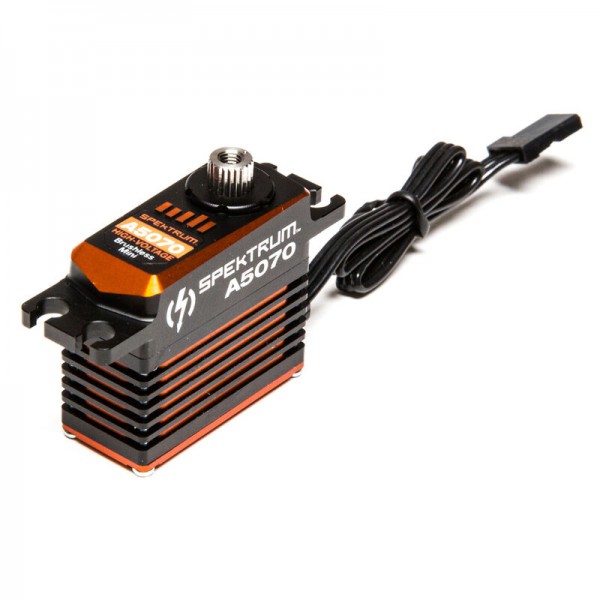

A5070 High Torque High Speed Mini MG HV Servo
169,99 €
