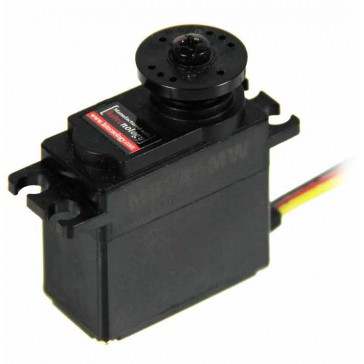

Servo MD245MW

Hitec MD245MW standard servo

Manufacturer: Multiplex

Reference: MPX1-01247

Stock status: Can not be ordered because availability unknown from the supplier. New delivery in 7 to 10 days.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 79,90 €

Notify me when available

Specifications
Data sheet
Composition Kit
Accessories

Specifications

Width : 17 mm
Height : 33 mm
Length : 33 mm
Weight : 0.04 Kg
Servo Type: Standard
Special features: Digital
motor type Servos: coreless
gear: metal
Operating voltage in V: 4.8-8.4 V
operating time s / 60 ° at 4 , 8 volts: 0.17
operating time s / 60 ° at 6.0 volt: 0.14
operating time s / 60 ° at 7.4 volt: 0.11
torque in kgcm at 4.8 volt: 4
torque in kgcm at 6.0 volt: 5
torque in kgcm at 7.4 volts: 6
teeth: 25T
ball bearings: yes
Waterproof: No
Brief description Servo: Magnetic Encoder
Flight recommendation: Yes Helicopter
recommendation: Yes
Car recommendation: Yes
Boat recommendation: Yes

Data sheet

Manufacturer : Multiplex

Composition Kit

1x 17mm servo MD245MW
1x servo lever (disc) M-O25 mounted
1x servo lever M-I25
1x servo lever (cross) M-X25
1x fastening set (screws, eyelets and rubber sleeves)
1x instructions

Accessories

HFP-30 Servo field programmer MPX116001	In stock at the supplier	79,90 €
Metal horn set red (R-ML25) MPX118719	In stock at our store	7,90 €
Set of servo arms planes 25-tooth HS-8360/8370/838 MPX118715	In stock at the supplier	8,90 €
Set of servo arms Heli&Car 25-Zähne HS-8360/8370/8 MPX118717	In stock at the supplier	6,90 €
