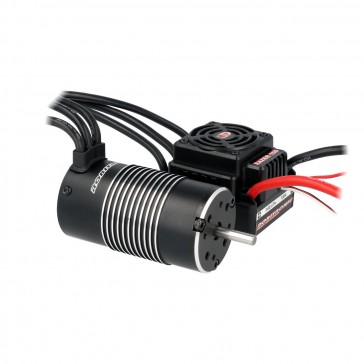

Razer eight Brushless Combo 150A 4274 2200kV

Robitronic Razer eight Brushless Combo 150A 4274 2200kV

More details

Manufacturer: Robitronic

Reference: ROBR01264

Stock status: Limited stock at our supplier. Shipment in 2 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 164,99 €

Quantity Maximum quantity reached.

Notify me when available

More info
Specifications
Data sheet

More info

Razer eight 150A ESC

Fully waterproof and dustproof
ON / OFF switch with setup button
S-BEC with 6V and 5A peak current
Plug and Play, battery and motor plug already soldered
Multiple protections: undervoltage shutdown, thermal protection and protection against signal loss.
Simple programming via set button
Separate programming port, easy connection of the LED program card (optional)

Razer eight 4274 2200Kv motor

4-pole rotor design for high torque and fast response
CNC machined, high-strength aluminum housing for optimum heat dissipation
Motor winding made of pure, double insulated copper wire
Precision ball bearing for best running smoothness and service life
Highly flexible silicone connection cable with soldered 4mm plugs
High strength and polished 5mm rotor shaft made of steel

Specifications

ESC :

Max current constant/Peak :	150A / 950A
Type:	Sensorless
Motor limit :	4s LiPo: Motor 4274, <=3000KV 6s LiPo: Motor 4274, <=2400KV
Internal resistance :	0.00035 Ohm
LiPo / NiMH cells:	3-6s LiPo / 8-18 éléments MiMH
S-BEC:	6V/5A
Programmation port :	Yes
Dimensions :	59.5x48x42mm
Weight :	178g
Usage :	1/8 Onroad, Offroad

Motor :

Kv : 2200
LiPo cells : 2S-6S
Poles : 4
Shaft : 5x18mm
Ext. diameter : 42 mm
Length : 74 mm
Weight : 400 g
Usage : 1/8 Truck, MT

Data sheet

Manufacturer : Robitronic
