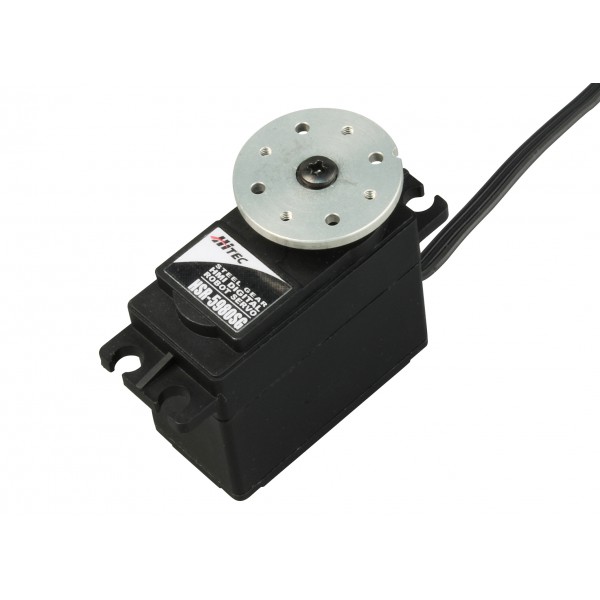

Servo HSR-5980SG
Hitec HSR-5980SG servo
More info
High Torque, Steel gear robotic servo of the 20 mm class
The Robot Servo HSR-5980SG is the economic version of the HSR-5990TG with steel gears.
Key features
• Programmable by Hitec multi-protocol interface cable
• Double ball bearing
• equipped with heat sink housing
• robust performance due to the based HMI circuit
• less heat generation
• ultra-hardened shaft with two axial metal bushes
• equipped with metal Round Horn
• flat construction
Specifications
- Width : 20 mm
- height : 37 mm
- length : 40 mm
- Weight : 0.068 Kg
- servo Type: Standard
- holding force in kgcm at 6.0 volts: 31
- Holding force in kgcm at 7.4 volts: 39
- Features: Wide Voltage Digital
- Engine type servos : brushed
- transmission: metal
- operating voltage in V: 4.8 to 8.4 V
- operating time s / 60 ° at 4.8 volts: 0:21
- setting time s / 60 ° at 6.0 volts: 0:17
- setting time s / 60 ° 7.4 volt: 00:14
- torque in kgcm at 4.8 volts: 19
- torque in kgcm at 6.0 volts: 24
- Torque in kg cm at 7.4 volts: 30
- teeth: 24T
- Bearings: Yes
- Waterproof: No
- Short description Servo: Robotics
- flight Yes
- Recommendation Heli: Yes
- Recommended Car: Yes
- Recommended boat: Yes
Data sheet
- Manufacturer : Hitec RCD
Servo HSR-5980SG
69,90 €
