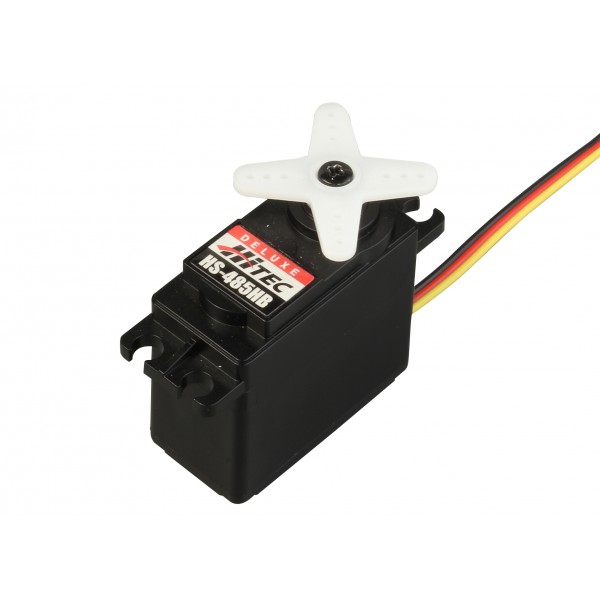

Servo HS-485HB

Powerful high-performance servo of the 20 mm class

Powerful, analog servos with top positioning speed. The HS-485HB servo provides unparalleled durability, thanks to its exclusive metal KARBONITE ^® gear and with its bearings on the output shaft. This is very advantageous when low clearance and high positional accuracy are important.
The HITEC Servo HS-485HB delivers maximum performance with low weight and is using this information also a favorite for industrial applications. The long life and the uniquely designed gearbox making it one of the most reliable and efficient standard servos on the market.

The HS-485HB is ideal for applications in demanding models, such as airplanes and electric helicopters.

• Width : 20 mm
• height : 38 mm
• length : 40 mm
• Weight : 0.045 Kg
• servo Type: Standard
• Features: Analog
• motor type servos: brushed
• Transmission: Karbonite
• operating voltage in V: 4.8 to 6.0 V
• operating time s / 60 ° at 4 , 8 V: 0.22
• positioning time s / 60 ° at 6.0 volts: 12:18
• torque in kg cm at 4.8 volts: 5
• torque in kg cm at 6.0 volts: 6
• teeth: 24T
• bearings: Yes
• Waterproof: No
• flight Yes
• Recommendation Heli: Yes
• Recommended Car: No
• recommendation boat: Yes
