>Electronics & Motors>Electronics>Servos>Servo DL5020 Metal gear Waterproof 20.0kg/0.16sec @6.0V
SRT

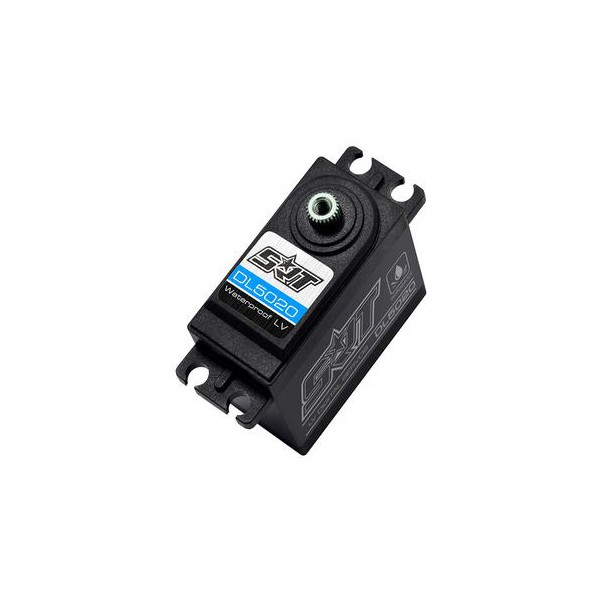

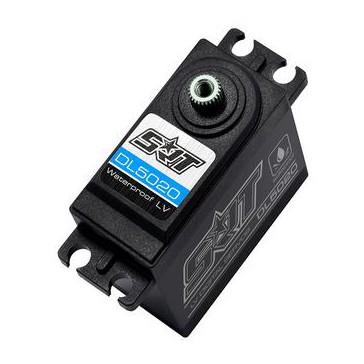

Servo DL5020 Metal gear Waterproof 20.0kg/0.16sec @6.0V

SRT DL5020 Metal gear Waterproof 20.0kg servo

More details

SRT

SRTDL5020

In stock at the supplier In stock at our supplier. Shipment in 4 to 7 days, without warranty.

 Shippingcosts from 6.99€
or collect for free at the shop. .

37,89 €


Notify me when available

More info

  • Ideal for 1/10 on road and 1/8 off road scale applications
  • Intermediate aluminum case
  • NMB dual main bearings
  • Superior waterproof
  • 25T output shaft
  • 1-Year Limited Warranty

Specifications

  • Type: Digital
  • Bearing: Dual
  • Motor Type: DC

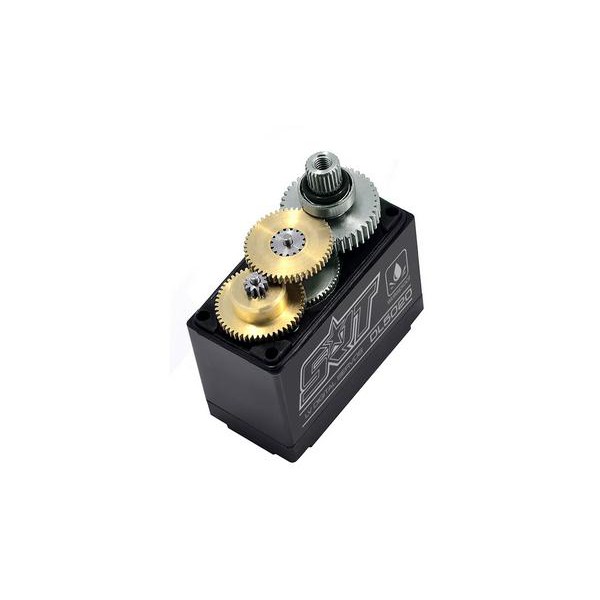

  • Gear Type: Metal
  • Gear Material: Titanium & Alu
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc4.8-6.0v
  • operating temperature range: -10 to + 60 degree
  • operating speed (4.8v): 0.18 sec/60 degrees at no load
  • operating speed (6.0v): 0.16 sec/60 degrees at no load
  • stall torque (4.8v): 16.5kg.cm (229.1 oz/in)
  • stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
  • potentiometer drive: direct drive

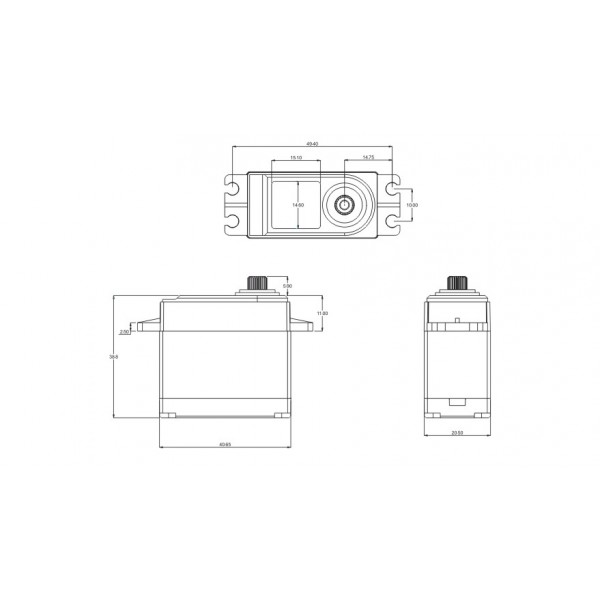

  • dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
  • weight: 65.0g (2.29 oz)
  • connector wire length: jr 250 mm

Data sheet

  • Manufacturer : SRT
