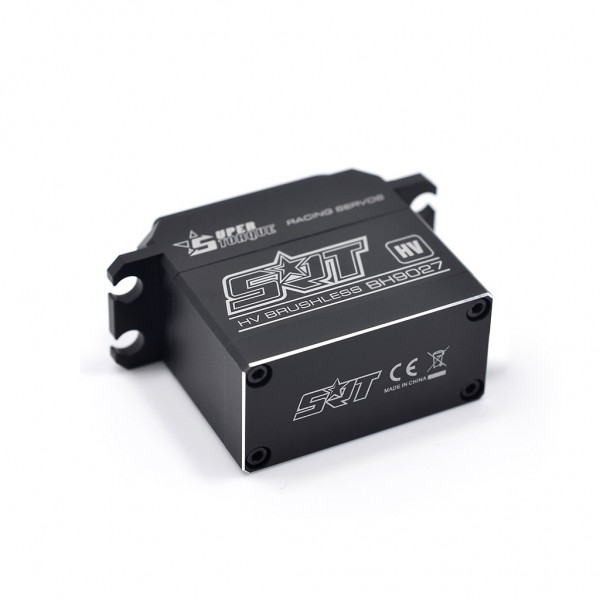

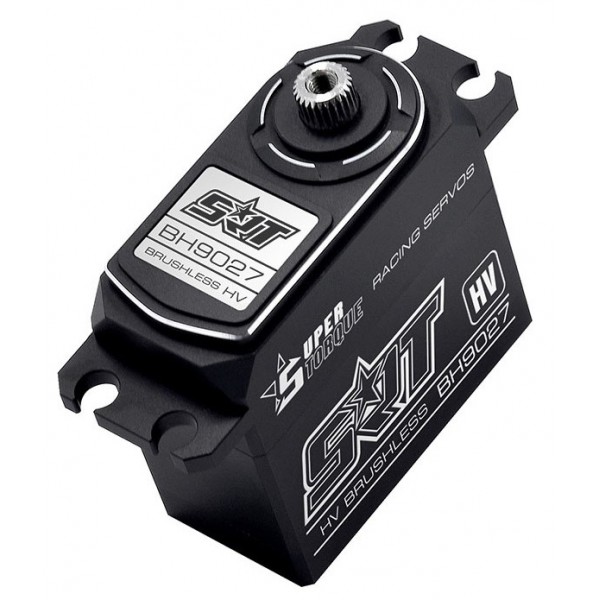

Servo BH9027 Brushless HV - High torque 25.0kg/0.08sec @7.4V

Maximize

Electronics Servos Electronics & Motors

Servo BH9027 Brushless HV - High torque 25.0kg/0.08sec @7.4V

SRT Servo BH9027 Brushless HV - High torque 25.0kg

More details

Manufacturer: SRT

Reference: SRTBH9027

Stock status: In stock at our supplier. Shipment in 4 to 7 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 109,99 €

Quantity Maximum quantity reached.

Notify me when available

More info
Specifications
Data sheet

More info

Ideal for 1/8 on road and 1/8 off road scale applications
Superior Holding Torque
incredible efficiency and low power consumption
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
NMB dual main bearings
25T output shaft
HD 4096 Resolution
2 μsec Dead Band
1-Year Limited Warranty

Specifications

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.075 sec/60 degrees at no load
stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 250 mm

Data sheet

Manufacturer : SRT
