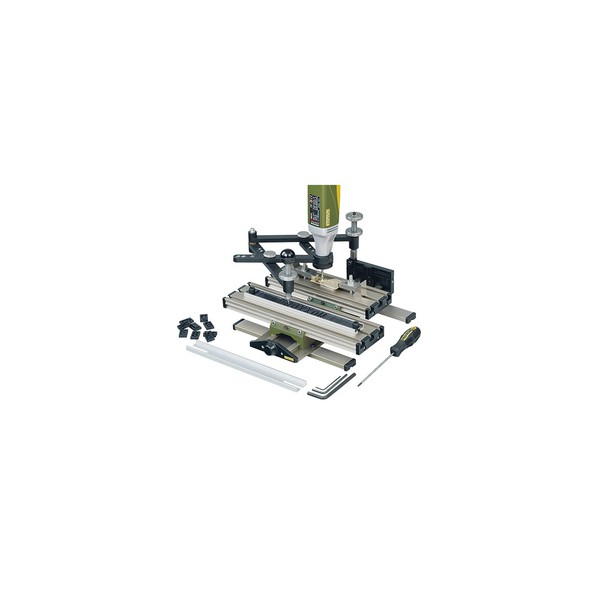

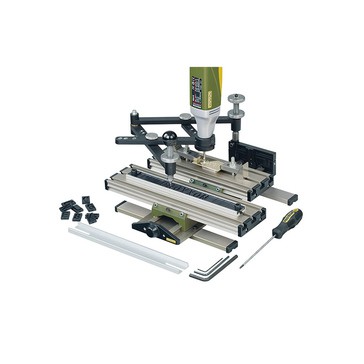

Graveerinrichting GE 20

With 20 mm MICROMOT collar for all drills and milling machines that are equipped with collets.
To engrave letters, numbers and individual shapes on metal, plastic, glass or stone. For name tags, jewelry or other Valuable objects. Also to work on patterns made himself or commercially available (plants, animals, coats of arms).
For small areas, individual shapes, cutouts or outline figures in series.
Maximum 14 characters can be fixed in the guide rail (carrier model). The contours of the matrix must then be retraced with precision with the guiding axis (of the ball handle). The result of cut is transferred in reduced format. The reduction ratio is 2: 1, 3: 1, 4: 1 or 5: 1 and can be adjusted by simply adjusting two screws. The tool is fixed with clamps (here MICROMOT clamps notched 24 256) or by a vise on an adjustable slot table.
Included: 2 sets of letters from A to Z, dash, dot and slash (52 parts), one hexagon key of 1,5 - 3 and 5 mm and a 2.5 mm INHEX screwdriver. Delivered with a detailed user manual.

Note :
The IBS / E industrial drill grinder and clamps are not included!
