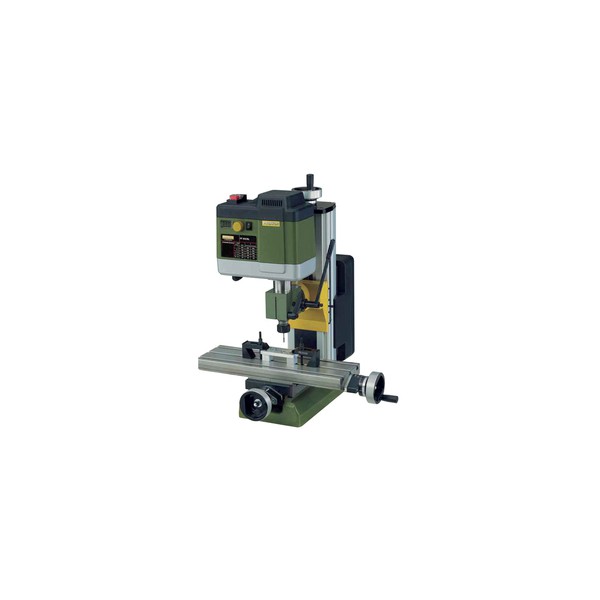

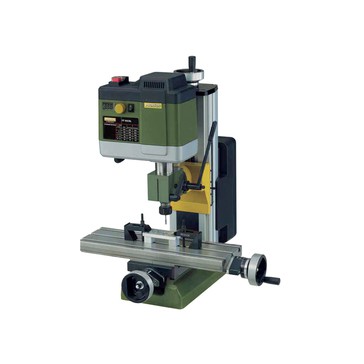

Fijnfrees FF 500/BL

New technology with direct drive: quiet and vibration free with high precision (0.05mm). Variable speed preselection of 200 - 4,000 rpm.

Clear 4-digit speed display for optimum machining. Sophisticated control via rotor position and speed sensors ensures high torque for large milling applications in the lowest speed range.
Solid column with dovetail guides. The milling head can rotate from left to right at 90 ° (with graduated scale). Tool receiving by clamping clamps type ER 20 (EIN 6499-B): One of each 6 - 8 - 10 and 12mm are included.
Adjusting the height of the milling head via a knob.
Cross-linked steel table with 3 continuous T-grooves according to the MICROMOT standard (12 x 6 x 5mm). Each of the 3 wheels at a scale (1 turn = 2mm).

230V. 400W. 50 / 60Hz. Speed 200 - 4,000 rpm.
Offset (up to 125mm shaft) 30mm counter-head gun feed.
Column 120 x 100 x 430mm.
Table 400 x 125mm.
Vertical stroke (Z axis) 220mm, transverse (X axis) 310mm and depth (Y axis) 100mm.
Dimensions: H 750mm, L 550mm, W 550mm.
Weight about 47kg.
