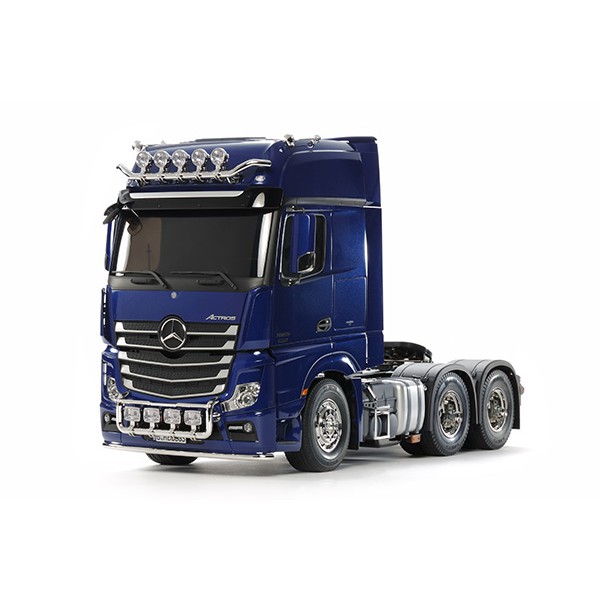

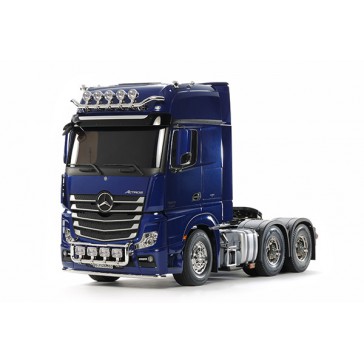

This is a highly accurate 1/14 scale radio control model that recreates the Mercedes Benz Actros 3363 3-axle truck. The Actros series debuted in 2011 and was named 2012 Truck of the Year. Powered by a 15.6-liter inline-6 turbocharged diesel putting out a max of 630hp, the actual 3363 can haul up to 250 tons!
The Tamiya rendition faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts. The chassis is built for durability as it uses aluminum side channels with resin cross members. Drivability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately-sold 4-channel transmitter.
The Actros' realism can be further heightened with separately-available trailers that can be attached to its coupler and make the model over a meter in length!
Specifications
Scale | 1/14 |
Construction type | Assembly kit |
Terrain use | On-Road |
Drive-train | 4-axle semi |
Drive type | Gearbox |
Drive line | Dog bone |
Differential type | Gear |
Suspension | Leaf spring |
Steering mechanism | Bell-crank |
Shock damper | Friction damper |
Shock damper material | Aluminum |
Tire type | Rubber |
Tire tread | Radial |
Body material | ABS Plastic |
Chassis material | Aluminum & plastic |
Electronic Speed Control (ESC) | Not included |
ESC model | N/A |
LED Light buckets | Yes |
LED lights | No |
Motor | 540-brushed type |
Bearings | Metal bushings |
Adjustable camber | Fixed |
Adjustable toe angles | Front only |
Adjustable ground clearance | Fixed |
Adjustable gear ratio | 3-speed transmission |
Adjustable wheelbase | Fixed |
Adjustable track width | Fixed |
Adjustable shock angle | Fixed |
Dimensions | Length: 538mm, Width: 195mm, height: 305mm |
Data sheet
- Manufacturer : Tamiya
- Level of difficulty (1 to 3) : 2
What you need to complete
- 4-channel radio gear
- Electronic speed controler
- TS Plastic model paint
- 7.2 V battery and charger
Mercedes Actros 3363 6x4 Gigaspace
473,99 €
